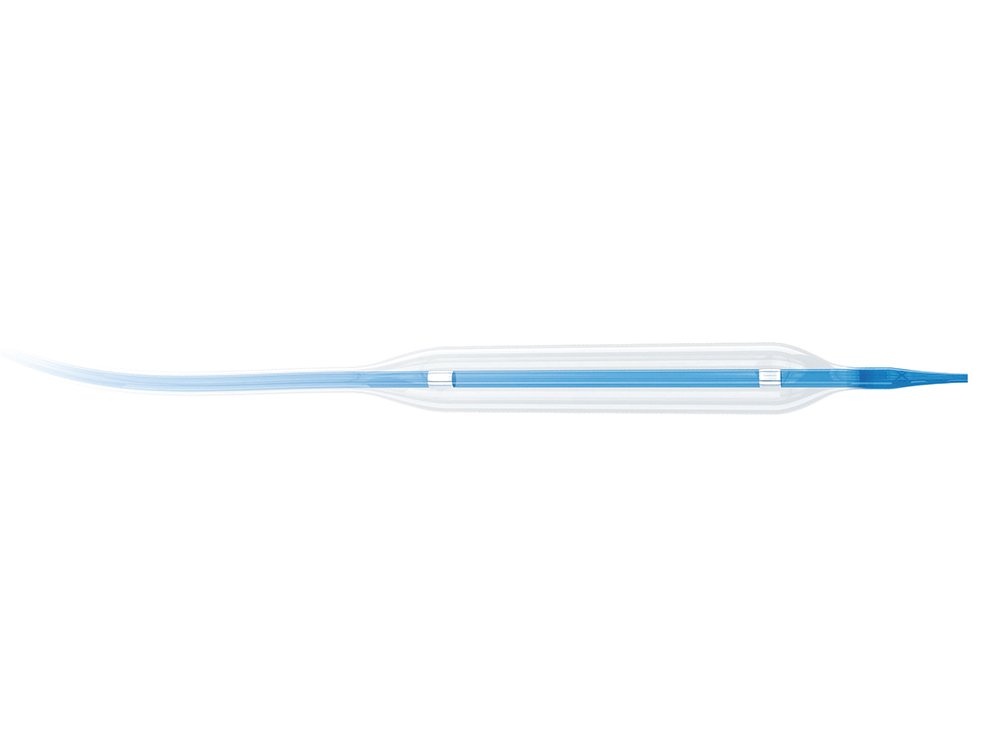

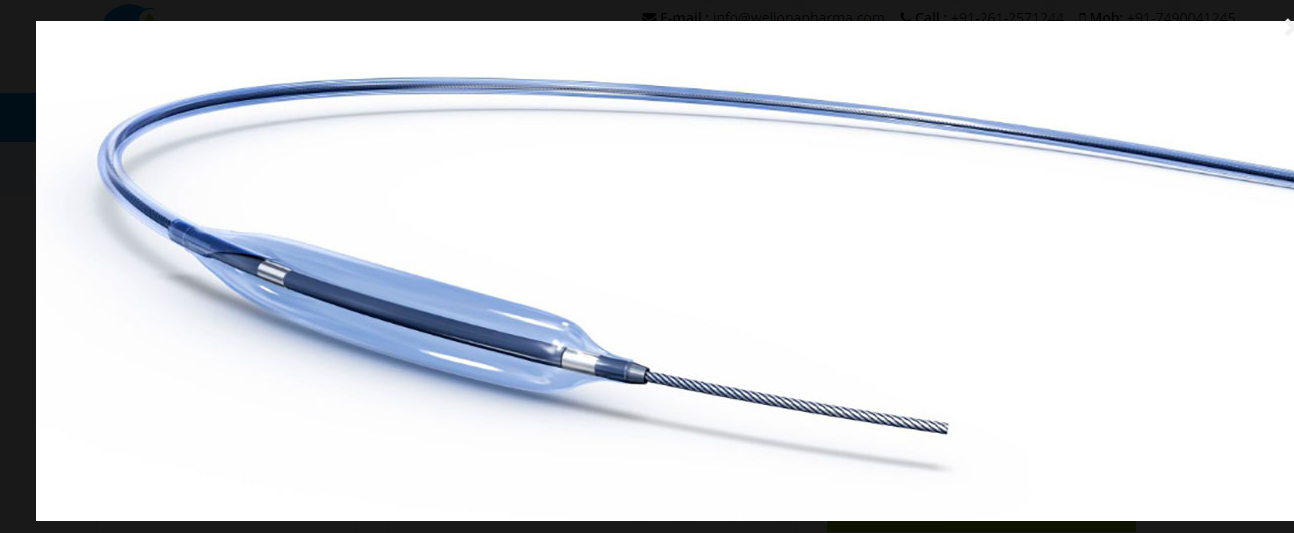

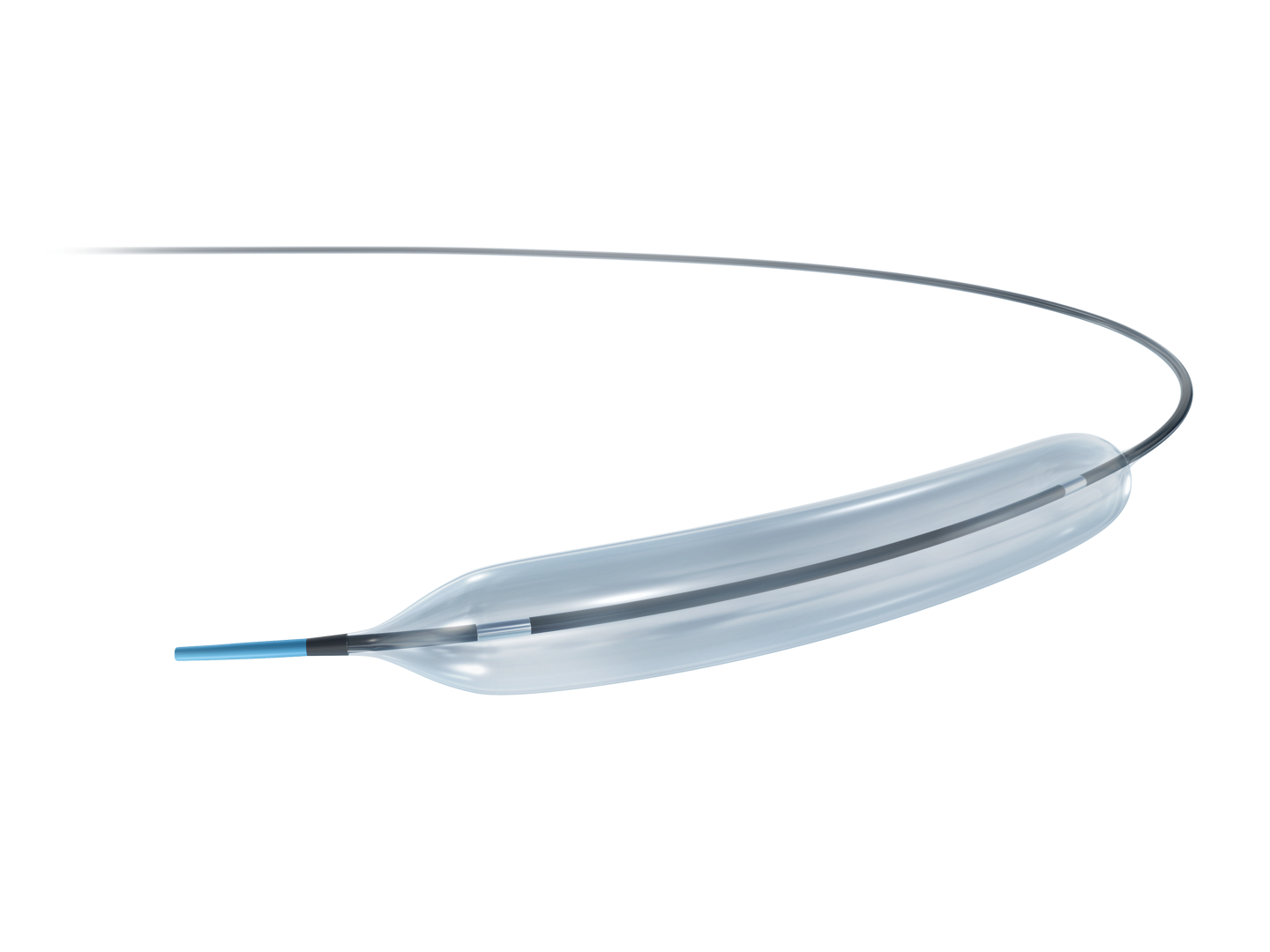

The Non-Compliant (NC) Balloon Catheter is a high-precision interventional device used in percutaneous coronary interventions (PCI) to dilate stenotic (narrowed) coronary arteries and prepare lesions for stent deployment. Unlike compliant balloons, NC balloons maintain a nearly constant diameter even at high inflation pressures, allowing controlled and predictable vessel dilation.
Product Description / Features:

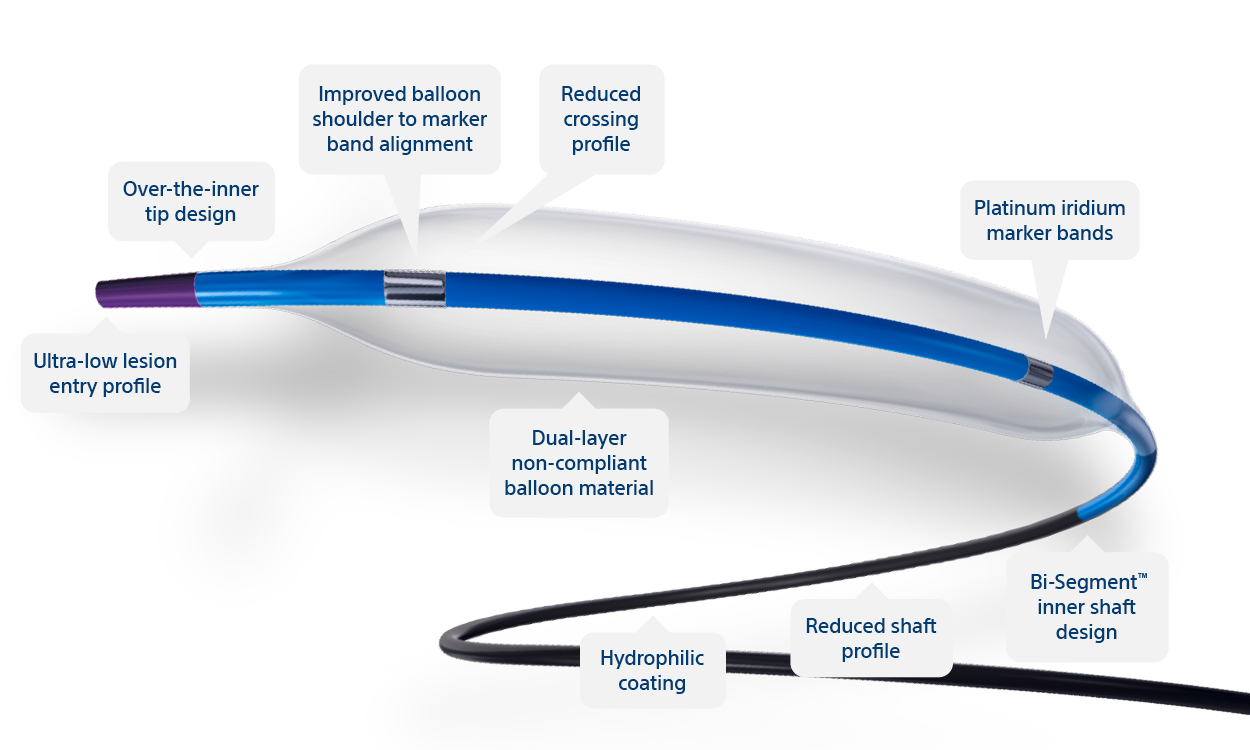

Tailor-made polymer with sleek finish to prevent collision with stent struts
Direct Torque transmission design for superior steerability and control
Push ability, track ability, and excellent distal flexibility
Ultra-smooth transition area with lubricious hydrophilic coating for friction-free performance
Ergonomic, transparent hub for safe connection
Proximal marker bands at 90 and 100 cm
Parallel guide wire exit port ensures best push ability and dye flow injection
Lower profile, new jacketed hypo tube design, extended skived hypo tube and exclusive blend of distal shaft materials for responsive push and track
Integrated markers and small shaft diameter facilitate contrast media injection in small size guiding catheters
Rapid inflation/deflation with excellent rewrap characteristics
Reduced balloon profile
Strong, durable, flexible proprietary balloon material provides high-pressure capability and minimal axial growth during inflation
Excellent track response due to design
Highly flexible catheter shaft maximizes track ability
Focused inflation force
Controlled stent pushing towards the vessel wall

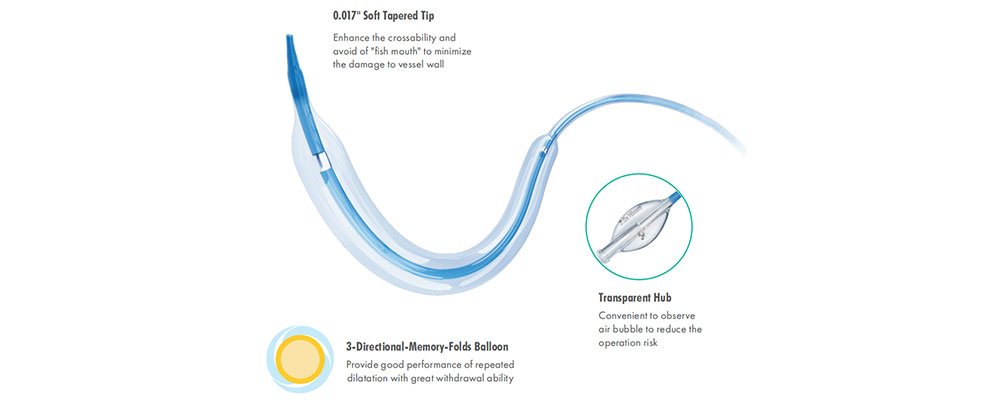

Extremely flexible tip for tortuous anatomies
Durable non-compliant balloon for multiple dilatation needs
Technical Specifications:
| Parameter | Value |
|---|---|
| Balloon diameter | 2.00, 2.25, 2.50, 2.75, 3.00, 3.25, 3.50, 3.75, 4.00, 4.50 & 5.00 inch |
| Balloon length | 8, 10, 12, 15, 18, 20, 22, 25, 30 inch |
| Design | Rapid Exchange |
| Balloon type | Non-compliant |
| Distal shaft outer diameter | 0.89 inch |
| Proximal shaft outer diameter | 0.72 inch |
| Usable catheter length | 1414 inch |
| Minimum guide catheter compatible | 5 Fr / 6 Fr |
| Guide wire compatible | 0.014″ |
| Nominal inflation pressure | 12 ATM |
| Rated burst pressure | 22 ATM (2.00–4.00 inch), 20 ATM (4.50–5.00 inch) |
| Marker bands | 2 Platinum–Iridium markers |
| Tip entry profile | 0.018″ |
Why It Is Used / Purpose:
Accurate lesion preparation and dilation in PCI procedures
Pre-dilatation of coronary lesions before stent deployment
Post-dilatation of stents for optimal expansion and apposition
Predictable vessel expansion with minimal risk of dissection or rupture
Safe and controlled high-pressure inflation in complex or tortuous coronary anatomy
Low Profile Shaft: Minimizes vessel trauma during navigation.
