TRACK FOLD 3 PORT

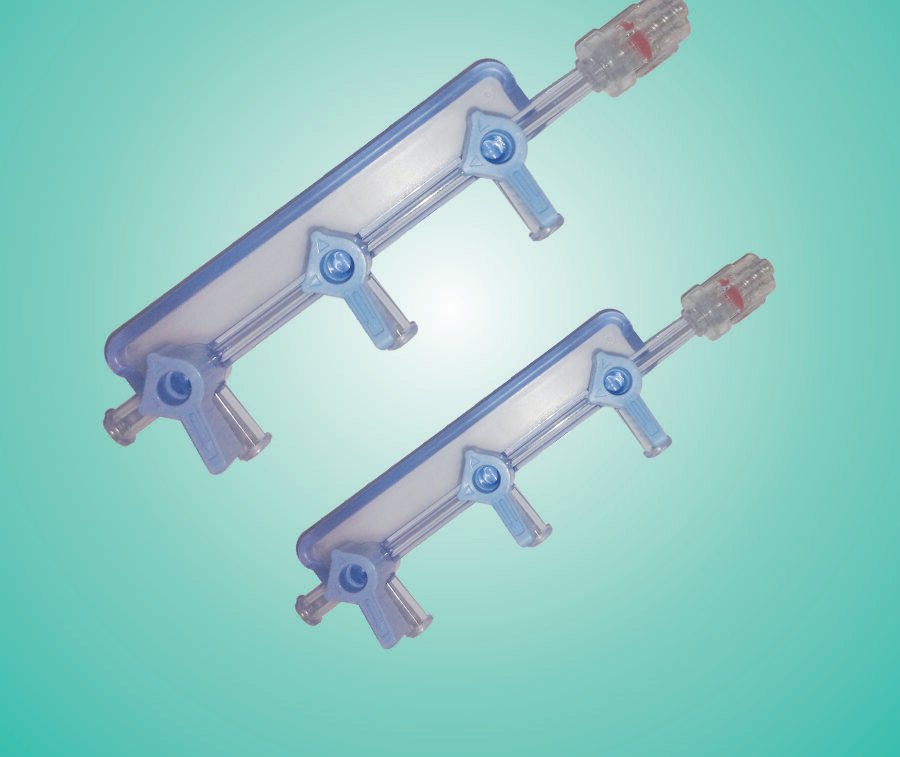

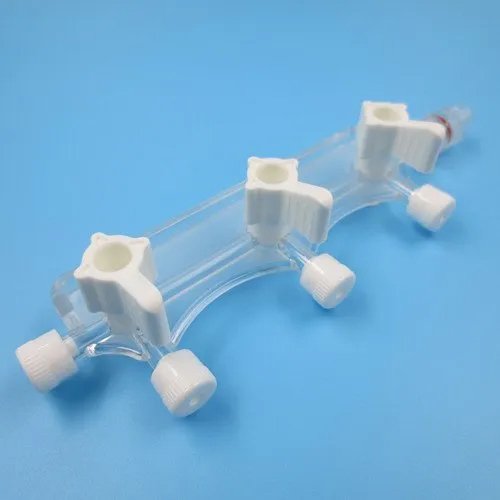

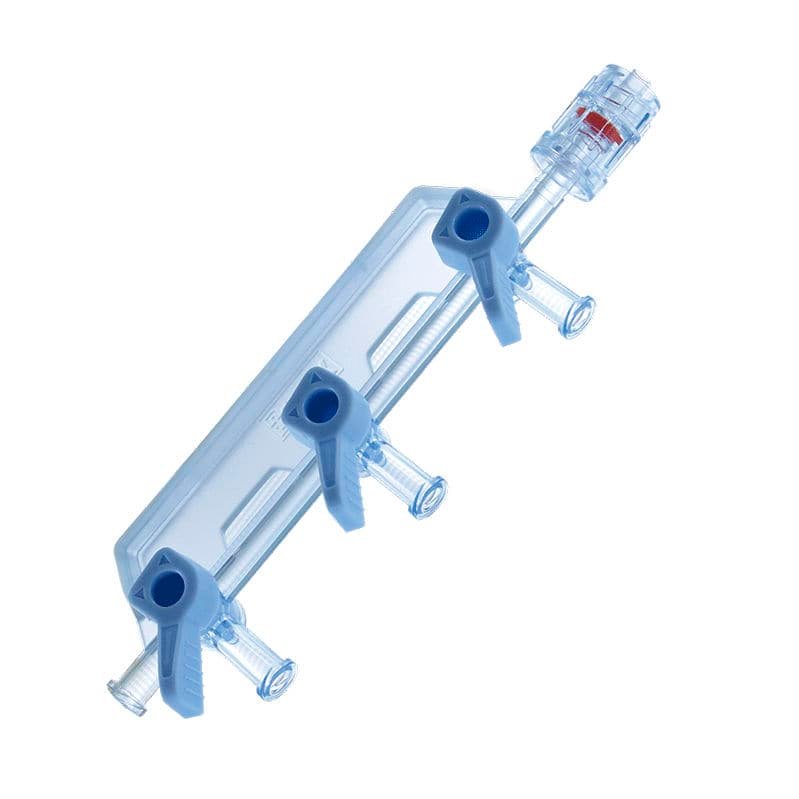

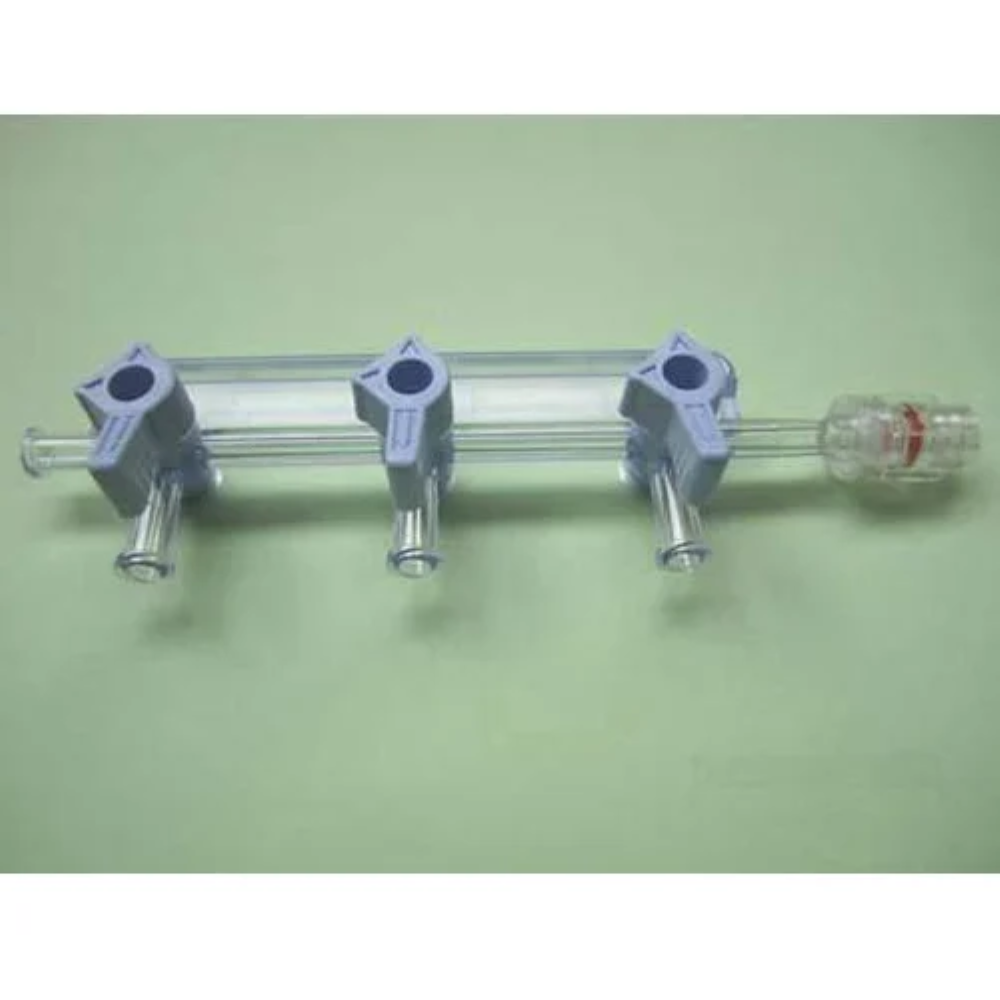

The 3-Port Manifold plays a crucial role in modern interventional cardiology and radiology by serving as a central hub for fluid control. Its design includes three independently controlled high-pressure ports, enabling operators to switch between fluids (contrast, saline, flush solution) and connect monitoring systems without interrupting the procedure.

This advanced manifold ensures accurate contrast delivery, seamless line switching, and reduced procedural time, while also minimizing the risk of infection, air embolism, and fluid leakage.

• Why it is used:
  ✅ To control and direct multiple fluid lines (contrast, saline, pressure transducer) in real-time
  ✅ Reduces the need for frequent line changes, improving procedural efficiency
  ✅ Enhances patient safety by reducing contamination risk and air entry
  ✅ Ensures precise fluid management under high-pressure conditions (500–1000 psi)

• Where it is used:
  🔹 Cardiac Catheterization Laboratories (Cath Labs) – angiography, angioplasty (PCI), stent placement
  🔹 Interventional Radiology – vascular imaging, peripheral interventions
  🔹 Peripheral Vascular Procedures – TAVI, EVAR, and other catheter-based therapies

• Key Features & Benefits:

  • Three independent high-pressure stopcocks for safe and easy switching

  • Pressure rating up to 500–1000 psi for contrast injections

  • Transparent polycarbonate body for excellent visibility of fluids and bubbles

  • Ergonomic handles for smooth push–pull or rotational control

  • Leak-proof luer-lock connectors compatible with standard cath lab devices

  • Sterile, single-use design with shelf life of 3–5 years

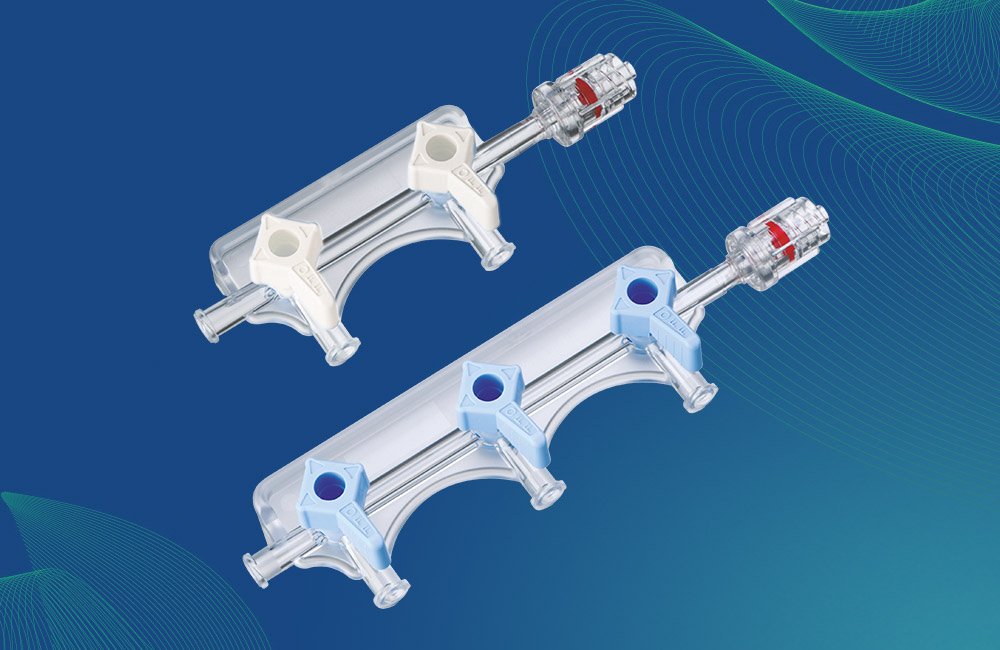

  • Available in straight or angled port design for operator convenience

📊 Available Types / Variants

(Expiry / Shelf Life: Sterile, usually 3–5 years depending on packaging conditions)
